Experiment 5: Gas Law Apparatus.

Objective: to determine how the pressure changes depending on the volume maintaining the temperature as constant as possible.

Background:

There are three main gas laws which are combined to form the ideal gas equation. One of these three laws is applied in this experiment. But , first of all, what is an ideal gas?

An ideal gas is a hypothetical gas formed by identical particles of zero volume, with no intermolecular forces.

Charles' - Gay Lussac law: in this one, we maintain the pressure constant and we change the temperature and volume. "At constant pressure, the volume of a fixed mass of gas is a linear function of temperature".

Gay - Lussac's law: in this one, we maintain the volume constant and we change the temperature and pressure. "At constant volume, the pressure of a given mass of gas is a linear function of temperature"

Boyle - Mariotte's law: this is the one used in the experiment. In this one, we maintain the temperature constant and we change the volume and pressure. "For a fixed mass of an ideal gas at cosntant temperature, the product of pressure and volume is a constant".

Variables:

Independent variable: the independent variable in this experiment is the volume of air we put into the gas container because we get to chose how the amount of gas we want to have. We measure this variable in mL.

Dependent variable: the dependent variable in this experiment is the pressure as it changes depending on the changes in the volume. We measure this variable in hPa.

Control variable: in this case, we were told to maintain the temperature as stable as possible and so we kept it within 21ºC and 21,5ºC. This variable is measured in ºC. Another one is the atmospheric pressure (as it is the pressure we always start with). This variable is measured in hPa. The initial amount of air we have (65 mL if we want to test the positive pressure values and 20 mL if we want to test the negative ones).

Materials:

- Gas Law Apparatus.

- Computer.

Procedure:

1.- Open an Excel file on your computer. Prepare three columns: volume (measured in mL*), pressure (measured in hPa*) and temperature (measured in ºC*).

* Al these units are the ones shown in the Gas Law Apparatus. If these are not the units you have you might need to change them.

In order to obtain positive pressure values:

2.1-  Turn the clamping handle until it reaches the 65 mL.

3.1- Open the crank handle so that air, composed mainly of oxygen but mostly of nitrogen, can come in.

4.1- Once you have the 65 mL of air, close the crank handle.

5.1- Start turning the clamping handle and stop every 2 mL, in order to measure the results as accurately as possible.

6.1- As said before, stop every 2 mL and write down the corresponding volume, pressure and temperature.

7.1- Make a table in the Excel file with the corresponding data.

______________________________________________________________________________

In order to obtain negative pressure values:

2.2.- Turn the clamping handle until it reaches the 20 mL though it should already be there.

3.2.- Open the crank handle so that air can come in.

4.2.- Once you have the 20 mL of air, close the crank handle.

5.2.- Start turning the clamping handle and stop every 2 mL, writing down the corresponding volume, pressure (remember that you should obtain negative values) and temperature.

6.2.- Make a table in the Excel file with the corresponding data.

_________________________________________________________________________________

8.- Repeat these two procedures as many times as you can so that you achieve a better result.

9.- In order to process the data, make two tables, one for the positive pressure values and another one for the negative ones, and the two corresponding graphs**.

** In order to obtain a lineal function you have to change the volume variable into the inverse of the volume (1/volume).

Processing Data:

Table 1: table showing the relation between the volume (measured in mL) and the pressure (measured in hPa) of air starting with an initial volume of 65 mL.

Table 2: table showing the relation between the volume (measured in mL) and the pressure (measured in hPa) of air starting with an initial volume of 20 mL.

Table 3: table showing the relation between the inverse of the volume of table 1 (1/volume) and the pressure (measured in hPa) of air.

Table 4: Table showing the relation between the inverse of the volume of table 2 (1/volume) and the pressure (measured in hPa) of air.

Graph 1: graph showing the lineal relation between the inverse volume of table 3 (1/volume) and the pressure (measured in hPa) of air.

Graph 2: graph showing the lineal relation between the inverse volume of table 4 (1/volume) and the pressure  (measured in hPa) of air.

Video 1: what is and how to use the gas law apparatus.

Video 2: why do we obtain negative pressure values?

Video 3: three gas laws we should know in order to fully understant this experiment.

Video 4: Gas Properties programme.

Conclusion:
The experiment we carried out actually served as a demonstration of Boyle's-Mariotte Law which stated that for a fixed mass of an ideal gas at a constant temperature, the product of pressure and volume is a constant (P·V=K) .
We figured this throughout the experiment and we could also see it in the tendency line represented in the graph where we obtained a regression coefficient of 0,983.
Finally, during this lab session we tried to carry out an adiabatic process, which is why we attempt to keep the heat be constant.

References:

Hyperphysics.phy-astr.gsu.edu (1998). Ideal Gas Law. [online] Retrieved from: http://hyperphysics.phy-astr.gsu.edu/hbase/kinetic/idegas.html

Experiment 4: Mixing redox couples.

Objective: to observe if any reaction take place when we mix different elements/ compounds that form redox couples.

Materials:
- 3 test tubes.
- CuSO­­₄ (1M).
- NiSO­­₄.
- Zinc (solid).
- Zn(No3)2
- Copper thread.
- Magnesium (solid).

Procedure:
1.- Take a test tube and pour into it some NiSO­­_4.
2.- Take another test tube and pour into it some CuSO­­₄ (1M).

3.- Take the second test tube where the CuSO­­₄ is and put into it a piece of zinc. Write down if anything happens (meaning a reaction).

 5.- Take the first test tube where the NiSO­­₄ is and put into it some magnesium. Write down if anything happens (meaning a reaction).

6.- Take the third test tube where the zinc nitrate is and put a piece of copper thread into it. Write down if anything happens (meaning a reaction).

Collecting data:
As in this experiment we are observing if any reaction takes place between a compound and an element and no reaction has taken place, we cannot make a table or a graph with the results so we make videos anyway we've written down the different equations for the reactions taking place:

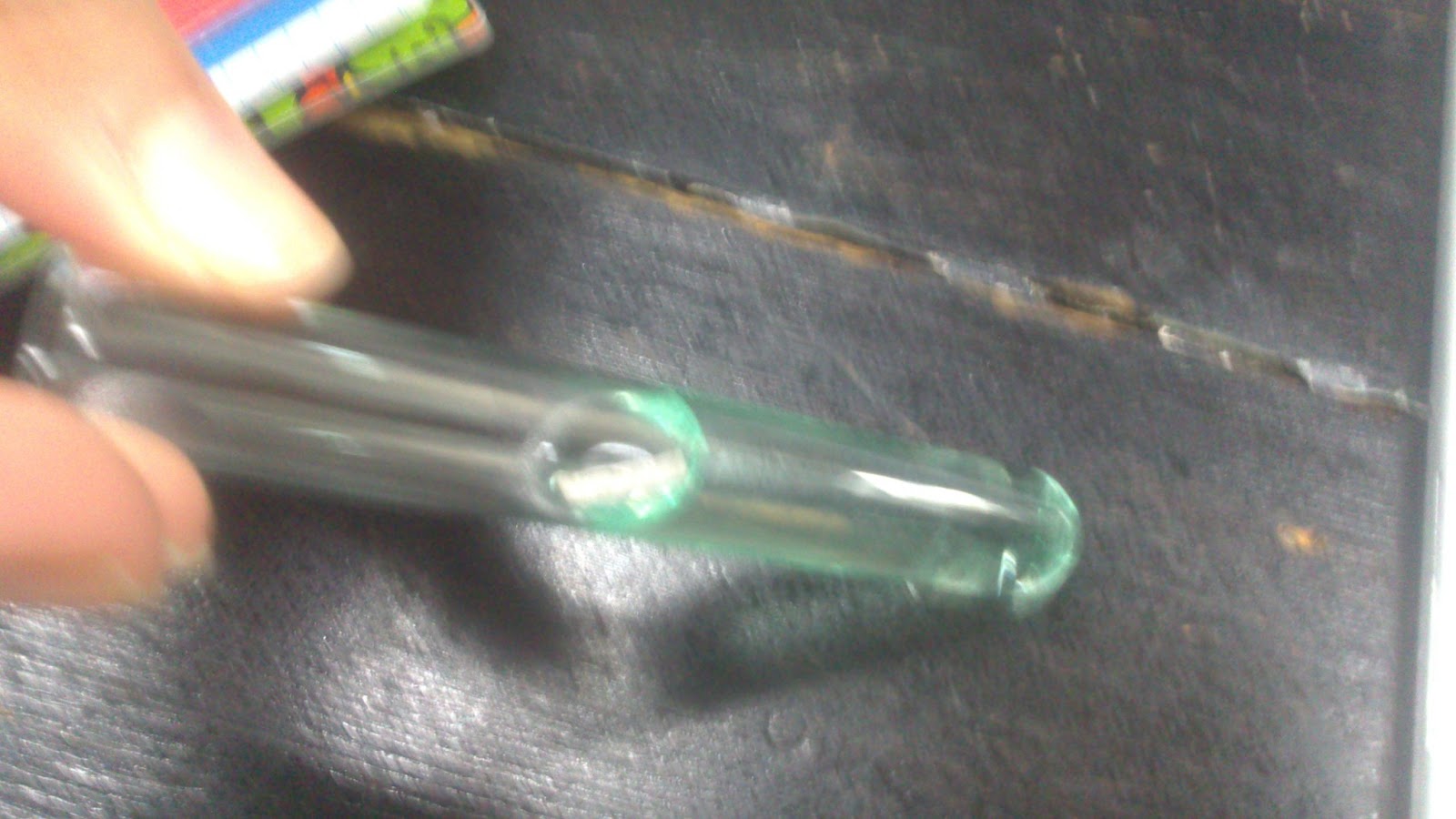

1st test tube: NiSO₄(aq) + Mg(s) --> Ni(s) + MgSO₄(aq)
2nd test tube: Zn(s) + CuSO_4(aq)--> ZnSO₄(aq) + Cu(s)
3rd test tube: Zn(NO₃)₂(aq) + Cu(s) = Cu(NO₃)₂(aq) + Zn(s)

Conclusion:

Experiment 2: Different tests.

Note: Just a couple weeks ago we were grouped in pairs and each pair was given three different compounds so they could carry out the same tests with each of the substances. As we are two pairs we have six substances although we will share the results of all our class.

Objective: to test several characteristics (smell, colour, shiness, aggregation state, melting point, boiling point, magnetism, combustibility, solubility in water, solubility in organic solvent, reactivity VS. water, reactivity VS. base, reactivity VS. acid, pH in aqueous solution and conductivity) of certain element/compounds.

Materials:

- Three different compounds/elements per pair.

- Bunsen burner.

- 6 test tubes.

- Test tube holder.

- Magnet.

- Lighter.

- Water.

- Organic solvent.

- Base.

- Acid.

- Stirring rod.

- Spatula.

- pH indicator paper.

- Safety goggles.

- Porcelain pot.

- Thermometer.

Procedure*:

--------------------------------Put on your safety goggles and your lab coats.---------------------------------

SMELL:

1.- Ask the teacher if it is safe for you to smell the compound/element. If it is safe write down whether the smell is none, mild or strong. If it is not safe for you to smell the compound/element the teacher should inform you if it is either, mild or strong.

COLOUR:

1.- Write down the colour of the compound/element or if it’s colourless.

SHINE:

1.- With the help of the light see if it shines (only applicable for solids and if it’s a metal make sure you scratch a bit the surface or you break it into pieces to see if it’s actually shiny in the inside).

AGGREGATION STATE:

1.- Write down if the compound/element is solid, liquid or gas.

MELTING/ BOILING POINT:

[We have not performed this in the lab as it is a dangerous process plus some substances we were using had really high boiling points which could not be reached with equipment in the lab. Although, if we were to perform it, we should follow the next steps:

1.- Put some of the compound/element into the test tube.

2.- Connect the bunsen burner to the gas and turn the gas on.

3.- Open the bunsen burner and lit it up.

4.- Heat up the test tube with the bunsen burner flame. The test tube must be tilted but make sure there’s nobody near you when doing so.

5.- In order to record the temperature at which it melts/boils you could use a thermometer, if the temperature is low, or a temperature sensor, if the temperature is higher but not too high.]

MAGNETISM:

1.- Take the magnet and a little bit of each compound/element. Put the magnet near it and see if the compound/element moves or is attracted towards the magnet.

COMBUSTIBILITY:

1.- Place a bit of the compound/element on the porcelain plate.

2.- Turn on the burner.

2.- Set fire to the element/ compound ( before doing so make sure there are no organic compounds in the table nearby where you are performing the experiment). In case it burns you need to make a note on how the flame is (the colour it has, its height...)

SOLUBILITY IN WATER/ REACTIVITY VS WATER/ pH IN AQUEOUS SOLUTION:

1.- Take the compound/ element and pour it into a beaker with water. Observe if any reaction between the water and the solute takes place. If there is any take note.

2.- With the help of a stirring rod, mix the two parts of the solution. If they cannot be mixed, the solute is not soluble in water.

3.- If you have obtained a solution, cut a bit of indicator paper and touch with it the solution. Write down the pH it indicates by the colour it turns to.

SOLUBILITY IN ORGANIC SOLVENTS:

1.- Pour some of the element/ compound into the test tube.

2.- Choose any organic solvent you have at your disposal (like, for example propanol or butanol) and pour some of it into the test tube.

3.- Write down if they mix or not (you may need the help of a stirring rod to be sure).

REACTIVITY VS OH^- (base)

1.- Pour part the base (OH^- ) in a test tube.

2.- Introduce the component/compound, in order to see if it reacts or not.

REACTIVITY VS H⁺

1.- Pour part the acid (H⁺) in a test tube.

2.- Introduce the element/compound, in order to see if it reacts or not.

CONDUCTIVITY:

1.- Take each of the element/compound and put them, if they are solid, on the porcelain pot or, if they are liquid, in a test tube.

2.- Take the conductivity tester and touch with the ends of it the element/compound. If the bulb lights up, the element/compound conducts electricity, if not, it doesn’t conduct electricity.

* As in this experiment we are testing different characteristics of the compounds/elements you don't have to follow a fixed order like you should in other meaning that the order in which you carry out the test doesn't matter but you must follow the steps in each single test.

PROCESSING DATA:

Table 1: table showing the different compounds/elements of which we (meaning all the students in our class) have tested the different characteristics.

VIDEOS:

Video 1: First part collecting all the test we carryed out.

Video 2: Second part collecting all the test we carryed out.

Video 3: Reaction of sodium and water.

CONCLUSION:

In the conclusion we would want to discuss several points:

- During the performance of this experiment we wrote down some results that we did not expect. Like the fact that four of our six elements/compounds didn't dissolve in water or that some of them didn't combusted when we expected they will do so.

- The performance of this experiment has not been as difficult as others could be but it has been very tedious as it was a very long experiment because we needed to test several things of many different elements/ compounds.

- We think that if we perform the experiment in another occasion we would be much faster and accurate as we would know what is better to be done after what and how to do things correctly.

Experiment 3: Redox Titration

Objective: to determine the minimum amount of MnO4 necessary to make a reaction with potassium.

Materials:

- Burette.

- Clamp.

- Erlenmeyer flask.

- Vertical stand.

- Measuring pipette.

- Test tube with Sulphuric acid (2 M).

- Potassium permanganate.

- Oxygenated water.

Method:

1. Set up the materials as shown in the image below(place the clamp on the stand and attach the burette to the clamp).

2. Pour the permanganate into the burette carefully (make sure the stopper of the burette is horizontal before doing so). It would be fitting to fill it up untill 1 instead of 0 as the compound we are using is really dark and it’s very difficult to adjust it to 0 as you can’t see the number clearly.

3. Put a beaker below the burette and open the burette letting some KMnO₄ pass through until the bottom part of the burette is filled.

4. Adjust the level of potassium permanganate up to 1.

5. Use the pipette to take 10 mL of oxygenated water (H202) and pour it into the 100 mL Erlenmeyer flask.

6. Call your teacher and ask him to add some 2M Sulphuric acid (HCL) to the H202.

7. Place the Erlenmeyer flask under the burette and slowly, let the KMnO4 pass through, while doing this, shake slightly the flask.

8. Repeat the process in step 7, until the solution remains purple when mixed with the KMnO4.

9. Place the stopper in a horizontal position, and record the level of KMnO4 in the burette.

And now a couple videos explaining the procedure and the different results you can obtain from this experiment:

Video 1: the procedure of the experiment.

Video 2: the different results you can obtain in this experiment.

Video 3: redox reaction between HCl, KMnO4 and H202.

Video 4: explanation of the redox equation

CONCLUSION:

At first, we thought that we will need more KMnO4 in order to see the reaction happen but as we performed the experiment, we saw that the amount of KMnO4 needed was not higher than 26 mL. Maybe, for that reason, the fact we thought that more KMnO4 was needed, we added two much and the second reaction (when it turns into a brownish colour) took place far too fast.

In addition, we think that if we weren't running out of time when we performed the final part of the experiment, we could have had obtained a more accurate result because we would have had time to pour the KMnO4 slower to see when the reaction exactly happened.

Either way, we reached a good result as the amount of KMnO4 needed to make the reaction happen was 25,5 mL and we used 26,6 mL, so it is a good result indeed.
